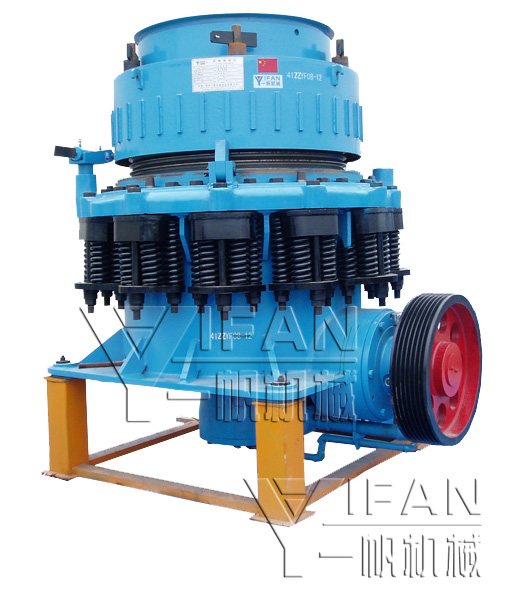

About Spring Cone Crusher:

Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness. Compare with jaw crusher, cone crusher is of stable structure, high efficiency, easy adjustment, economic operation, etc. The spring safety system of crusher acts as an overloading protection system that allows metal to pass through the crushing chamber so as not to damage the cone crusher. The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separate to make sure reliable performance. The type of crushing chamber depends upon size of feeding and fineness of crushed product. The standard type (SDY) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.

Spring Cone Crusher Project Example(YF-01)

Spring Cone Crusher Technical Data:

Model	Type of Cavity	Max Feeding Size(mm)	Discharge range opening(mm)	Motor Power(kw)	Open circuit,Closed side(mm),Capacity(t/h)
					3	5	6	10	13	16	19	25	31	38	52	64	76	89
CC539	C	155	25-38	75								128	147	175
	M	150	13-31	75					59	73	91	118	137
	F	87	9-19	75				46	59	73	82
CC539D	C	70	6-19	75			59	73	95	114	127
	M	51	5-16	75		41	55	68	91	100
	F	35	3-13	75	27	41	55	68	91
CC551	EC	260	25-52	200								237	273	324	398
	C	220	19-52	200							173	218	250	295	365
	M	180	16-38	200						132	159	200	228	253
	F	120	13-31	200					109	127	146	163	181
CC551D	C	90	8-25	200				109	159	182	200	228
	M	76	6-16	200			82	105	137	164
	F	55	3-16	200	36	59	82	105	137	164
CC567	EC	315	38-64	250										538	630	743
	C	230	25-64	250								354	417	454	610	637
	M	205	22-52	250								291	337	381	438
	F	180	16-38	250						182	205	259	296	327
CC567D	EC	115	13-25	250					255	282	309	337
	C	115	10-25	250				191	255	282	309	337
	M	76	6-19	250			137	164	209	255	282
	F	60	5-13	250		91	137	164	209
CC584	EC	460	38-89	400										880	1179	1361	1473	1531
	C	310	31-76	400									789	844	1088	1257	1386
	M	280	25-64	400								608	726	807	998	1128
	F	235	19-52	400							381	499	617	726	852
CC584D	EC	170	16-25	400						508	590	653
	C	150	13-25	400					454	480	540	599
	M	110	10-19	400				354	408	454	508
	F	90	5-16	400		190	270	345	360	408

Note:The capacity is total tons per hour passing through crusher  at open circuit when crushing medium and below hardness material and bulk density with 1.6x10³kg/m³.Capacities are relative to physical character and type of feeding,feeding size and composition and so on.
